Sniper EFI MasterKit
Holley : 550-849K
Artikelnr: HOL550-849K

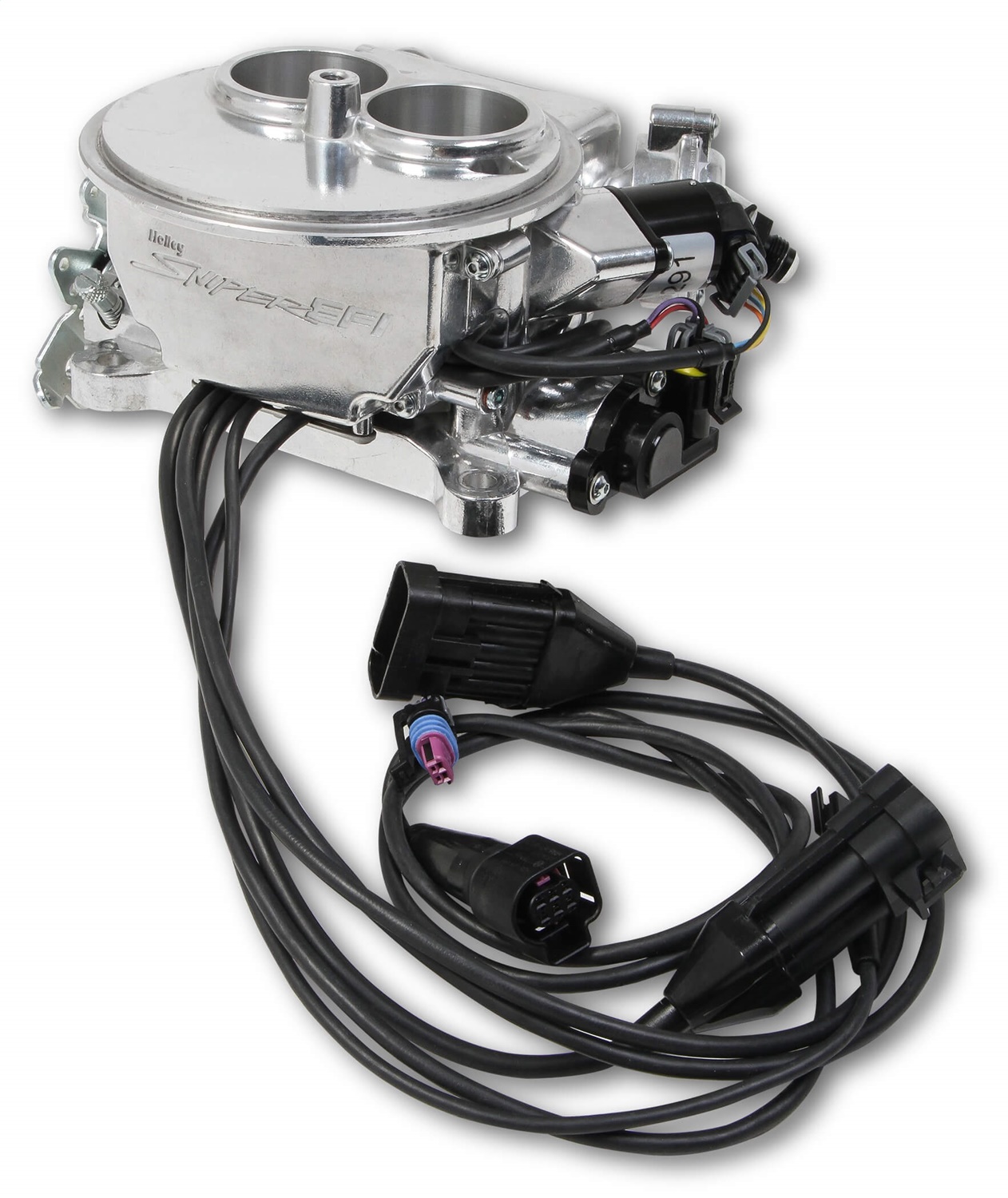

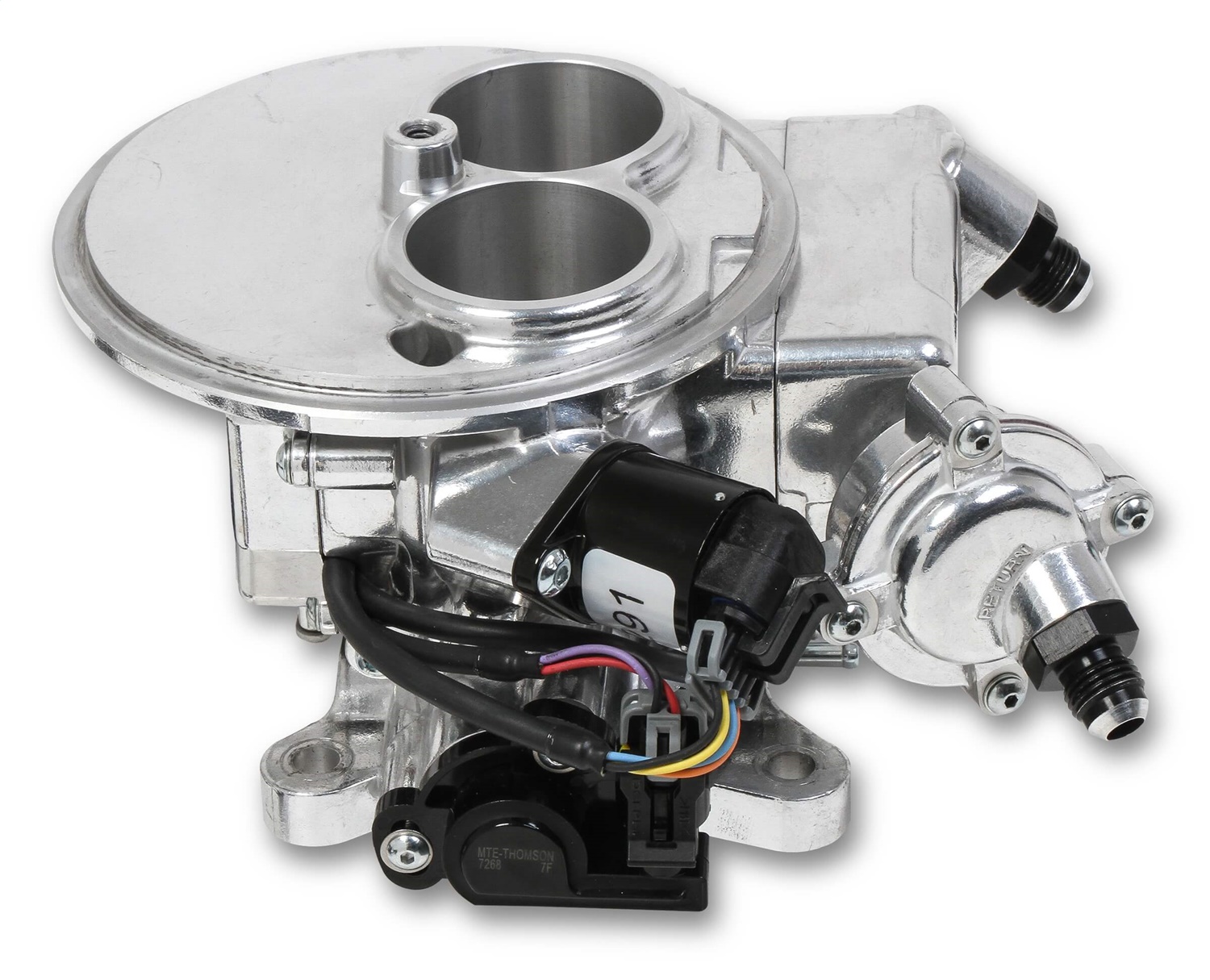

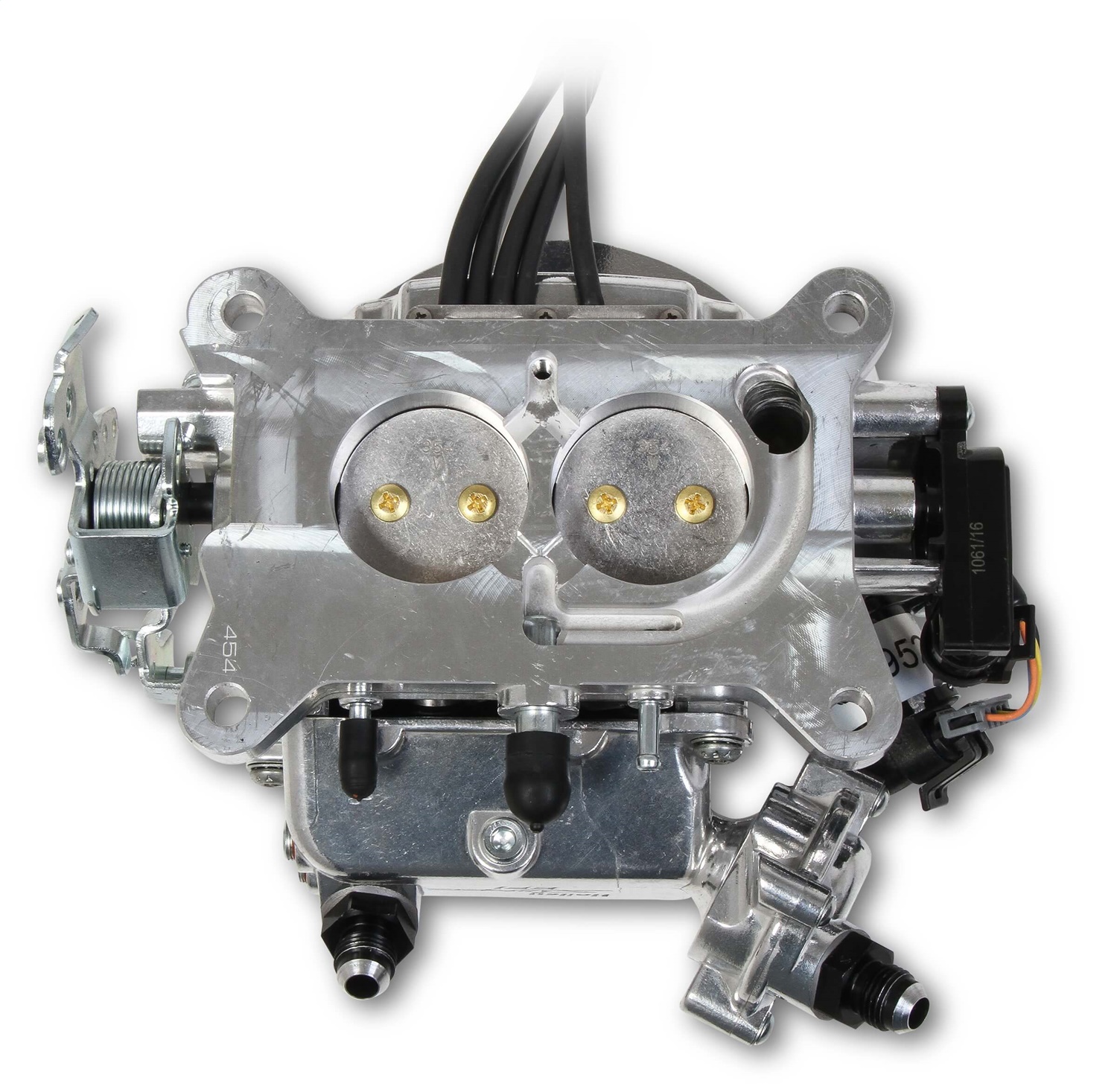

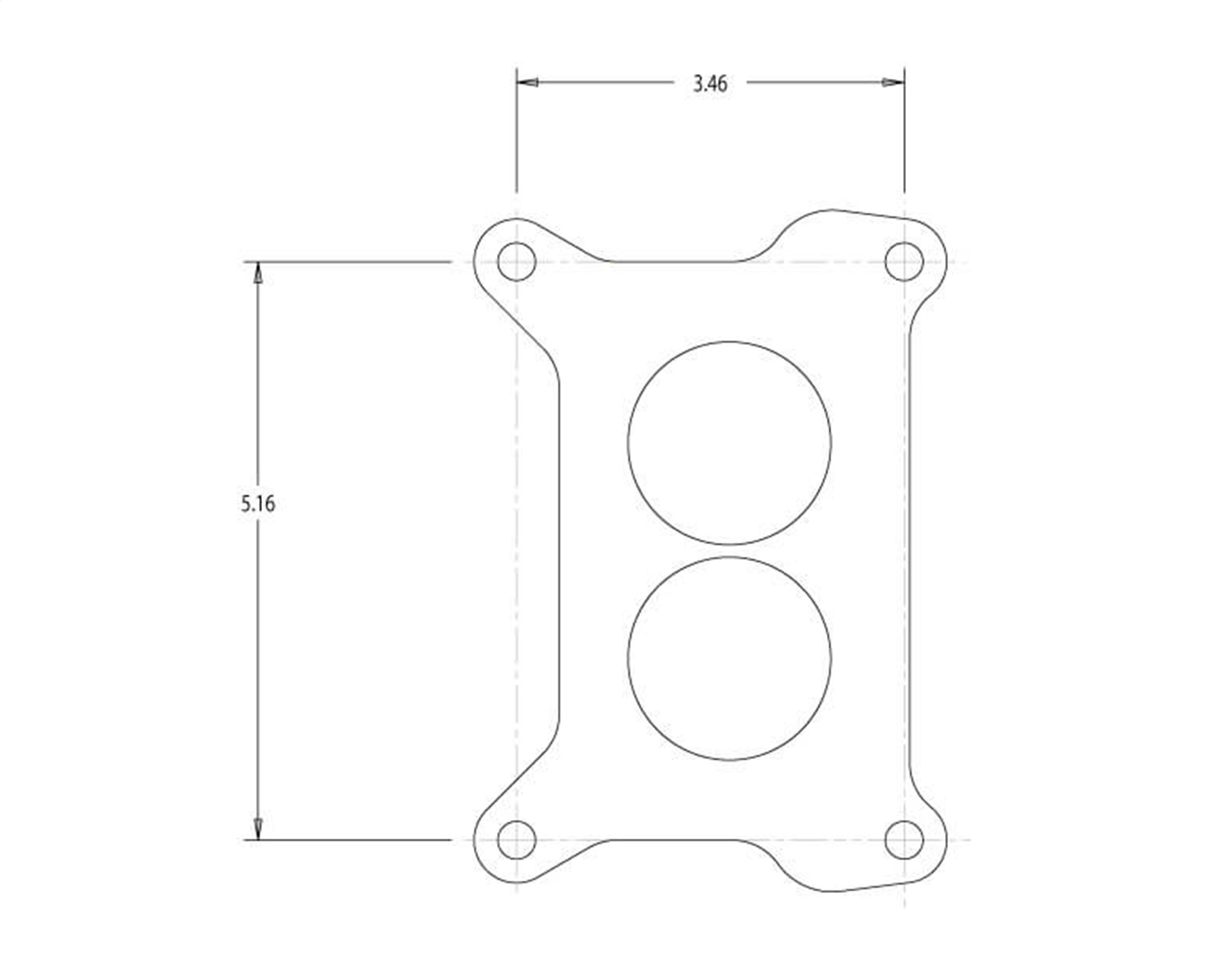

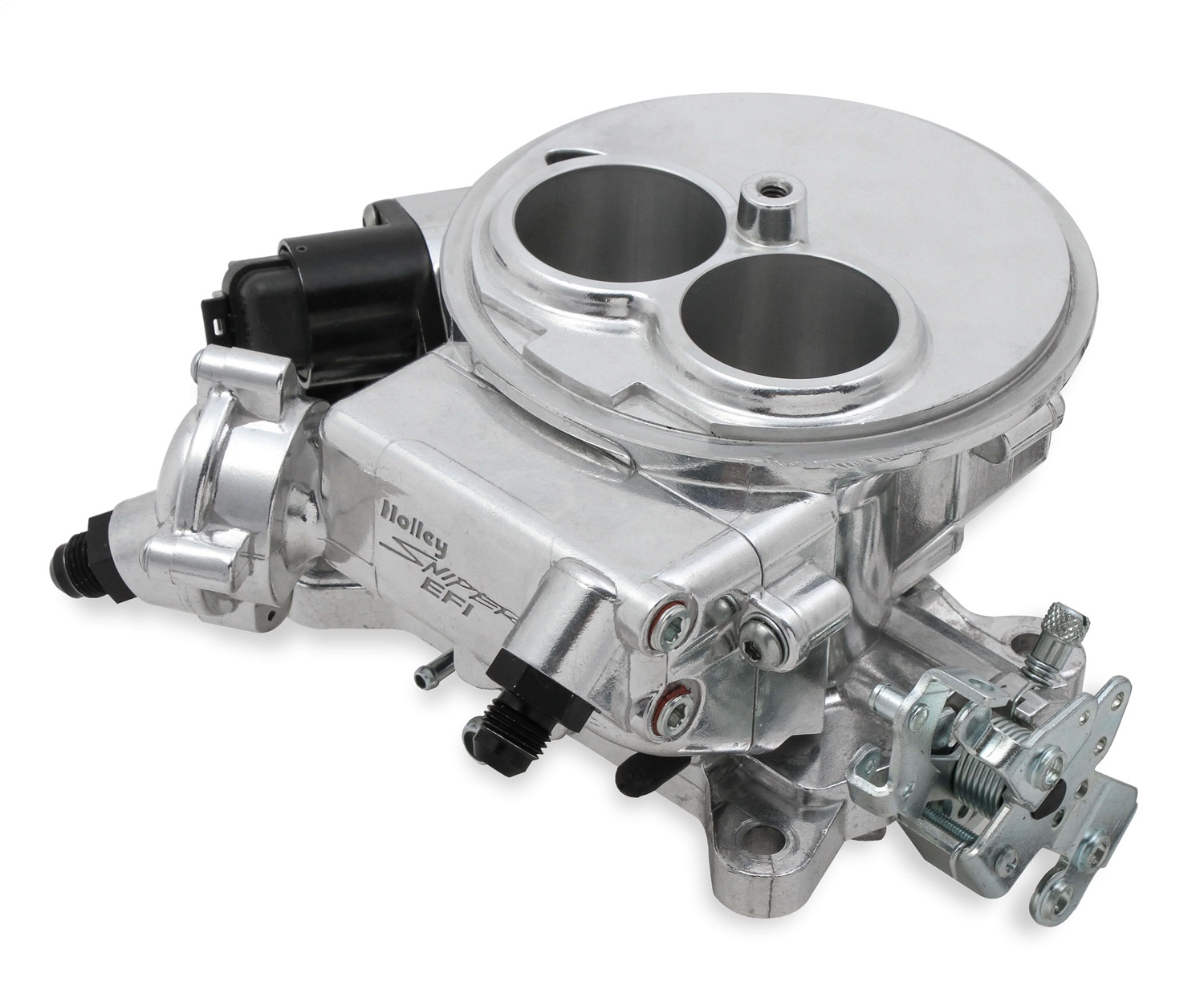

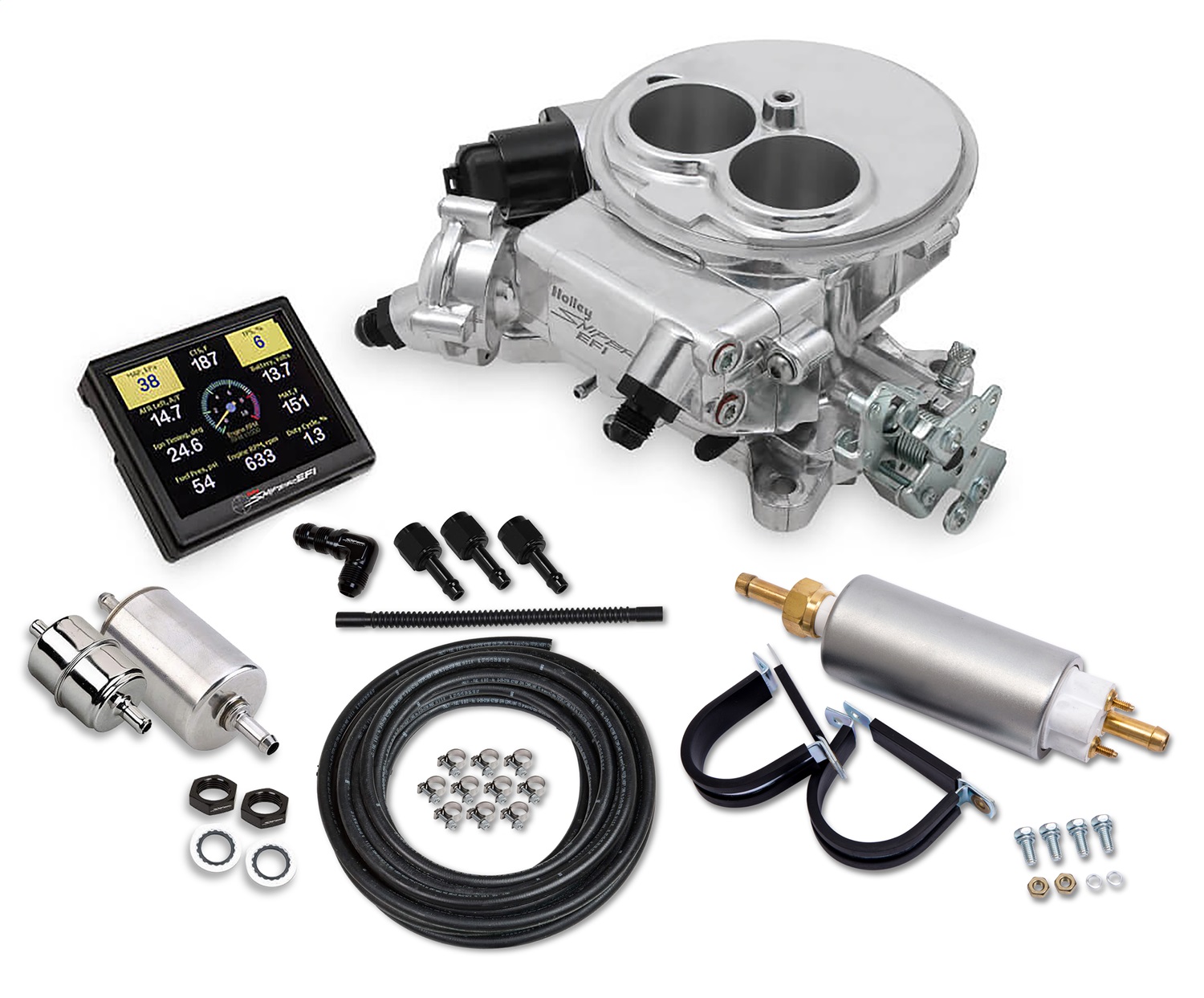

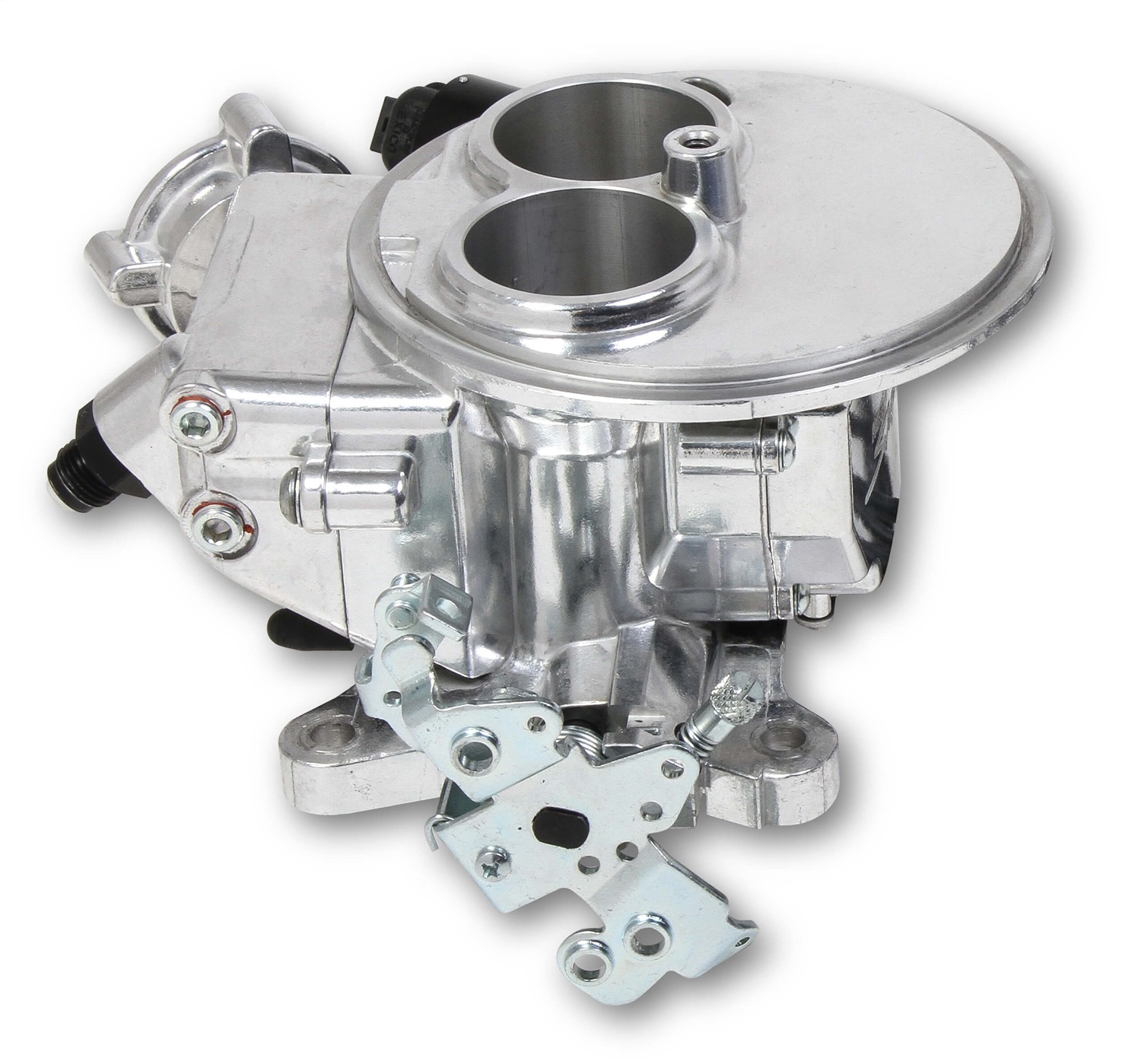

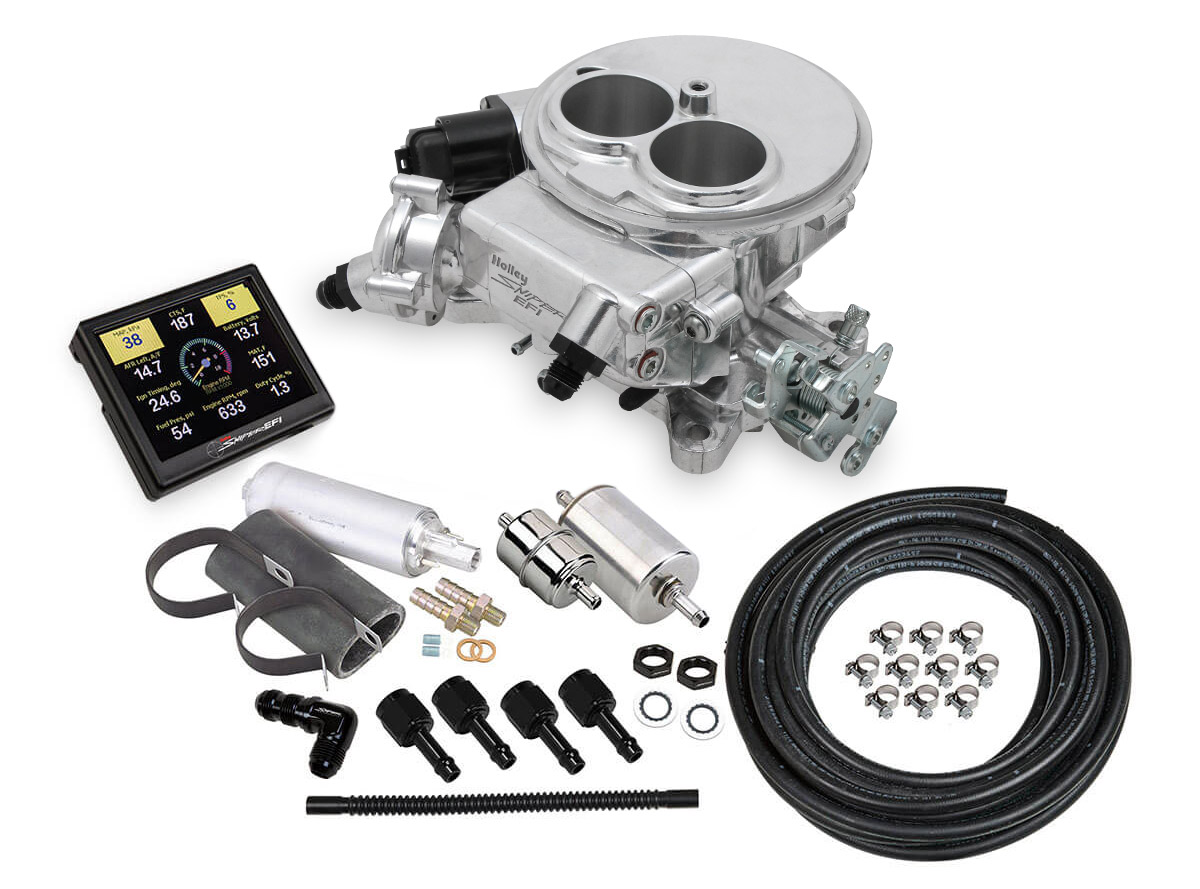

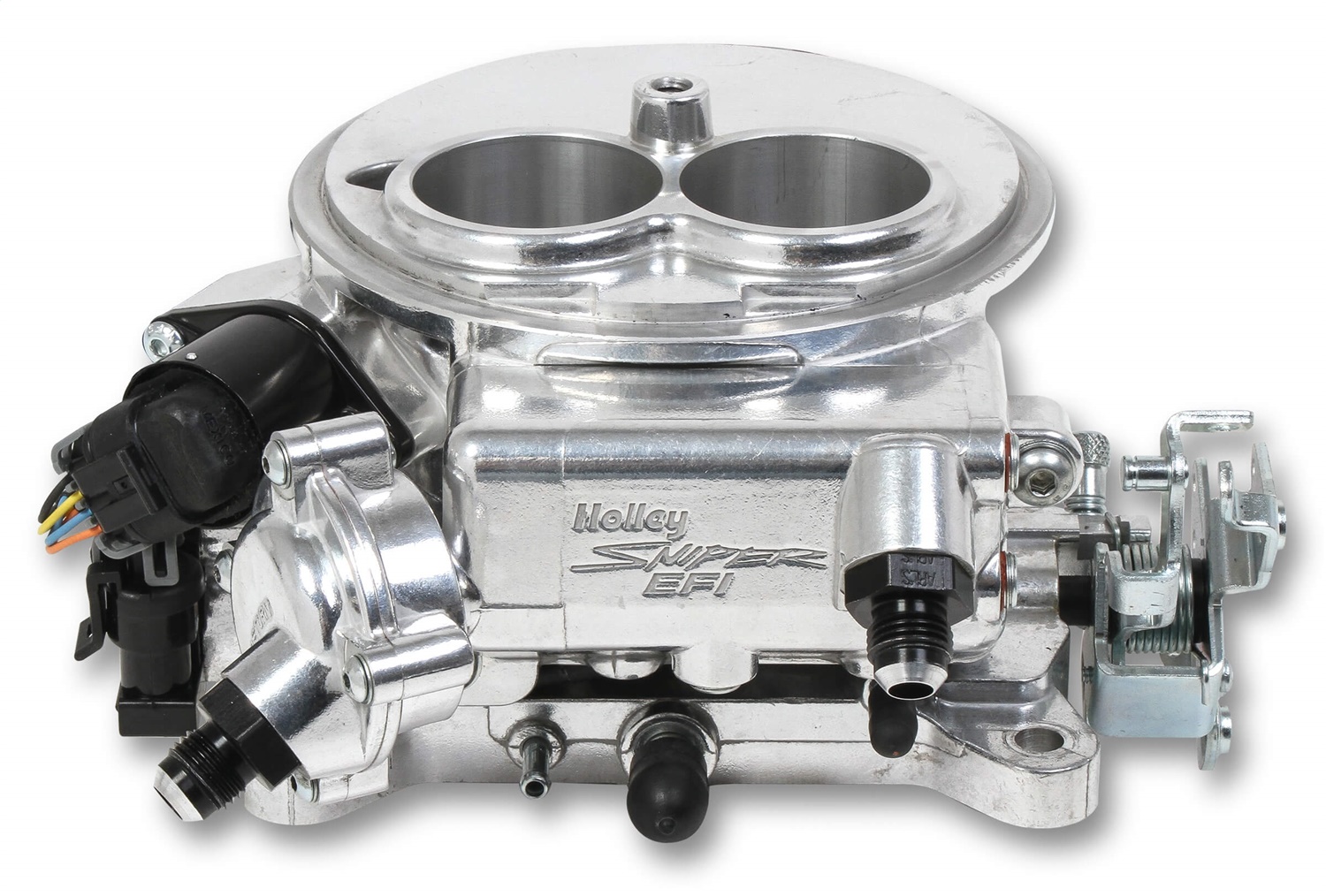

Holley Sniper 2300 master kit. 2-barrel. Polished finish. Complete fuel injection system with 3,5" handheld display, wiring harness, fuel pump, hose kit, fuel filters, mounting and hardware kit and installation instructions. Supports engines up to 350 hp (naturally aspirated) and up to 285 (forced induction). Self-learning ECU with user friendly basic set-up. Bosch LSU 4.9 wide-band oxygen sensor included. Holley model 2300 2-barrel mounting pattern. Air cleaners with 5-1/8" (130 mm) diameter mounting fits. Two 100 lb/hr injectors. 3,5" touchscreen handheld for real time data logging, initial setup, tuning, and gauge displays to view and monitor parameters with SD card to save key information.Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (preset to 58.5 psi). Equipped with C4 / C6 Ford transmission kickdown lever along with TH350, TH400, and TH700-R4 provisions. Only four wiring connections required for throttle body installation (battery +, battery -, switched ignition and rpm). ECU mounted to throttle body removing extra mounting and reducing RF noise.
* Bolt On 2300 Flange Carb Replacement
* Supports Up To 350 Hp
* Only 4 Wiring Connections Required
* Internal Fuel Pressure Regulator
* High Resolution Full Color Touchscreen Display
* Simple Calibration Wizard No Laptop Required
* Includes Clamp O
- CFM: 580
- Injector Size: 100 lb/hr @ 58.5 PSI
- Inlet Size: 0.5625 in. - 18 Female O-Ring (AN6)
- Outlet size: 0.5625 in. - 18 Female O-Ring (AN6)
- Transmission Model: TH350
- Make: Holley
