Koeler
Frostbite : FB185
Artikelnr: FRBFB185
* 100 Percent TIG Welded Seams * Aircraft Quality Aluminum Core/Fittings/Tanks * Billet Aluminum Filler Neck And OEM Brass Petcock * More Cooling Fins Per Inch For More Efficient Cooling * Custom Frostbite High Performance 16 lb. Radiator Cap * Polished Top And Tanks For Custom Show Appearance * Applications Supporting Up To 1000+ Horsepower * 1 Year Limited Warranty

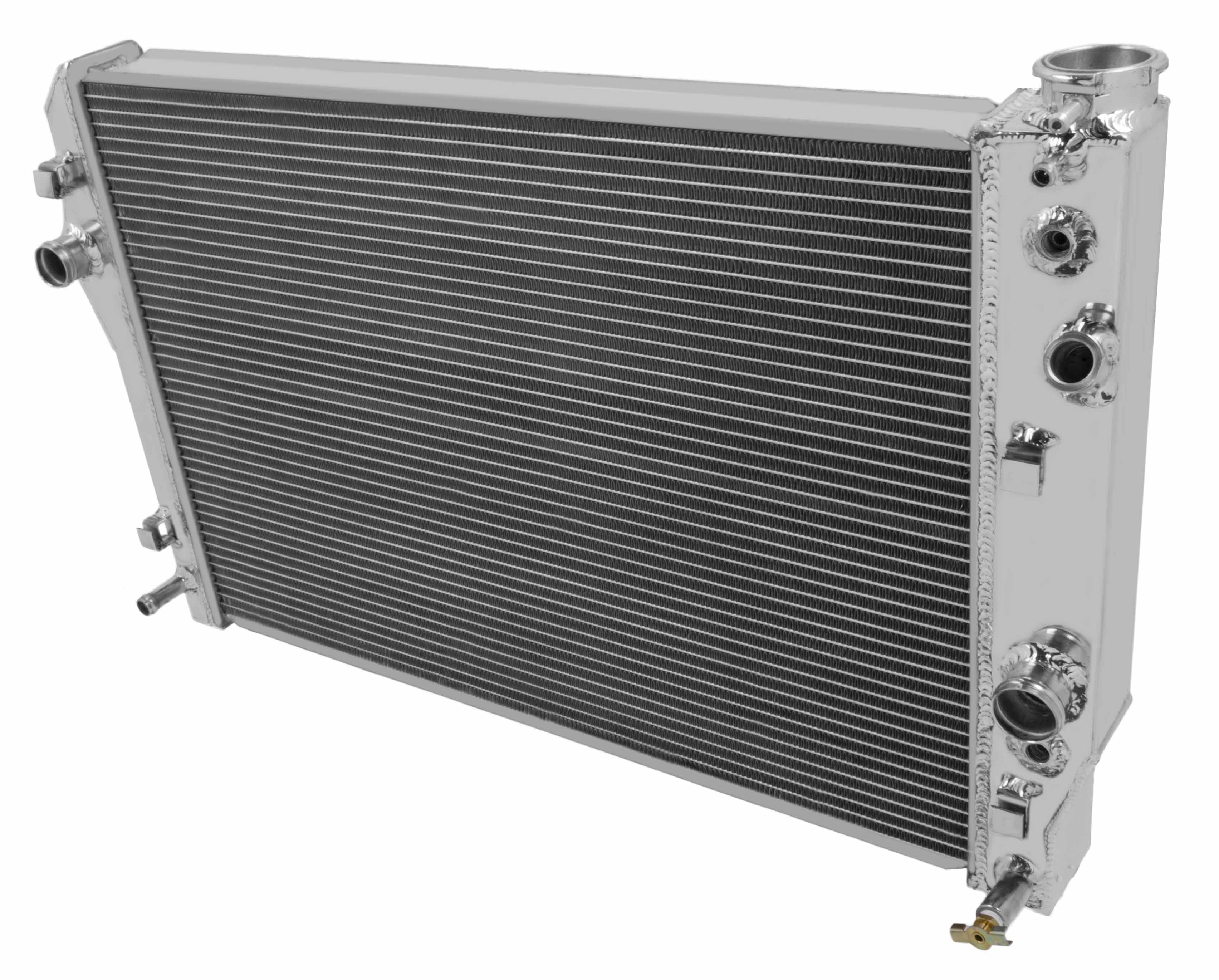

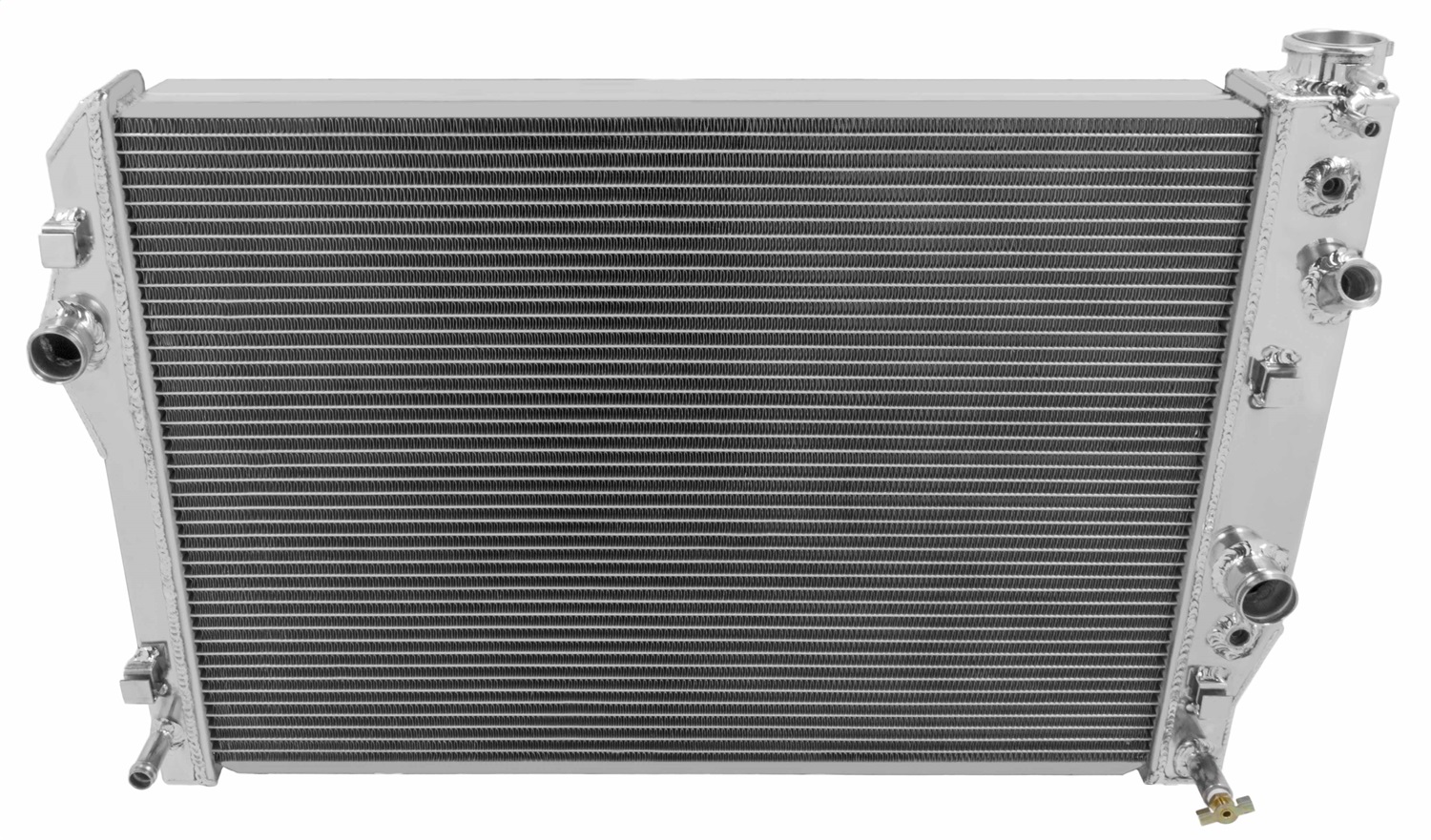

Aluminum Radiator; 2-Row; 1 1/4 in. Inlet; 1 1/2 in. Outlet; 20 1/2 x 29 5/8 in. Overall; Pin Mount;
- Cooling Row Diameter: 0.750 in.
- Core Dimension: 17.750 in. x 25.000 in.
- Core Thickness: 1.570 in.
- Hose Location Inlet: Driver
- Hose Location Outlet: Passenger
- Inlet Diameter: 1.250 in.
- Item Height: 20.500 in.
- Material: Aluminum
- Mount Type: Pin
- Mounting: Pin Mount
- Outlet Diameter: 1.500 in.
- Overall Dimension: 20.500 in. x 29.625 in.
- Overall Length: 29.625 in.
- Radiator Core Row Quantity: 2
- Transcooler Provision: 0.500 in. -20 Straight Thread G 0.250 in.
